SPECIFICATIONS

LED POSITION LAMP >>

SPEC

Input Voltage

6,500K
8~20
13,00K
8~20
unit
DCV

Input Current

Condition
DC13.5V
6,500K
0.053
13,000K
0.065
unit
mA

Power Dissipation

Condition
DC13.5V
6,500K
0.716
13,000K
0.878
unit
W

Luminus Flux

Condition
DC13.5V
6,500K
40~60
13,000K
35~55
unit
lm

Luminous Intensity

Condition
DC13.5V
6,500K
20
13,000K
20
unit
cd

Color Temperature

6,500K
5,800~6500
13,000K
9,000~17,000
unit
K

Operating Tempetature

6,500K
-20~+65
13,000K
-20~+65
unit

Size

6,500K
11.8Ø×26
13,000K
11.8Ø×26
unit
m/m

Weight

6,500K
5
13,000K
5
unit
g

LED OUTDOOR >>

SPEC

Power Consumption

WT-S-100
100W
WT-S-150
150W
WT-S-200
200W

Total Luminus Flux

WT-S-100
5,760lm
WT-S-150
8,640lm
WT-S-200
11,520lm

Color Temperature

WT-S-100
6,500K
WT-S-150
6,500K
WT-S-200
6,500K

SMPS Input Valtage

WT-S-100
90~264V/50~60Hz
WT-S-150
90~264V/50~60Hz
WT-S-200
90~264V/50~60Hz

Output Valtage

WT-S-100
DC24V
WT-S-150
DC24V
WT-S-200
DC24V

Lamp Life Time

WT-S-100
10,0000Hr
WT-S-150
10,0000Hr
WT-S-200
10,0000Hr

CRI

WT-S-100
RA75
WT-S-150
RA75
WT-S-200
RA75

Case Surface Temperature

WT-S-100
60℃ and less
WT-S-150
60℃ and less
WT-S-200
60℃ and less

Ruminous Flux Maintenance

WT-S-100
UP TO 90%/40,000Hr
WT-S-150
UP TO 90%/40,000Hr
WT-S-200
UP TO 90%/40,000Hr

WaterProof Grade

WT-S-100
IP-67
WT-S-150
IP-67
WT-S-200
IP-67

Operating Temperature

WT-S-100
-30℃~+85℃
WT-S-150
-30℃~+85℃
WT-S-200
-30℃~+85℃

Power Efficacy

WT-S-100
90%
WT-S-150
90%
WT-S-200
90%

LED Quantity

WT-S-100
White×48
WT-S-150
White×48
WT-S-200
White×48

Material

WT-S-100
PANEL:PC/BODY:AL
WT-S-150
PANEL:PC/BODY:AL
WT-S-200
PANEL:PC/BODY:AL

Size

WT-S-100
340×300×120
WT-S-150
450×300×120
WT-S-200
505×300×120

Weight

WT-S-100
6.5Kg
WT-S-150
8.2Kg
WT-S-200
9.0Kg

SECURITY LIGHTS >>

SPEC

Power Consumption

WT-S-025
25W
WT-S-050
50W
WT-S-070
70W

Total Luminus Flux

WT-S-025
11,40lm
WT-S-050
2,880lm
WT-S-070
4,320lm

Color Temperature

WT-S-025
6,500K
WT-S-050
6,500K
WT-S-070
6,500K

SMPS Input Valtage

WT-S-025
90~264V/50~60Hz
WT-S-150
90~264V/50~60Hz
WT-S-200
90~264V/50~60Hz

Output Valtage

WT-S-025
DC24V
WT-S-050
DC24V
WT-S-070
DC24V

Lamp Life Time

WT-S-025
100,000Hr
WT-S-050
100,000Hr
WT-S-070
100,000Hr

CRI

WT-S-025
Ra75
WT-S-050
Ra75
WT-S-070
Ra75

Case Surface Temperature

WT-S-025
60℃ and less
WT-S-050
60℃ and less
WT-S-070
60℃ and less

Ruminous Flux Maintenance

WT-S-025
UP TO 90%/40,000Hr
WT-S-050
UP TO 90%/40,000Hr
WT-S-070
UP TO 90%/40,000Hr

WaterProof Grade

WT-S-025
IP-67
WT-S-050
IP-67
WT-S-070
IP-67

Operating Temperature

WT-S-025
-30℃~+85℃
WT-S-050
-30℃~+85℃
WT-S-070
-30℃~+85℃

Power Efficacy

WT-S-025
90%
WT-S-050
90%
WT-S-070
90%

LED Quantity

WT-S-025
White×12
WT-S-050
White×24
WT-S-070
White×36

Material

WT-S-025
PANEL:PC/BODY:AL
WT-S-050
PANEL:PC/BODY:AL
WT-S-070
PANEL:PC/BODY:AL

Size

WT-S-025
125×300×120
WT-S-050
125×300×120
WT-S-070
125×300×120

Weight

WT-S-025
3.5kg
WT-S-050
4.5kg
WT-S-070
5.5kg

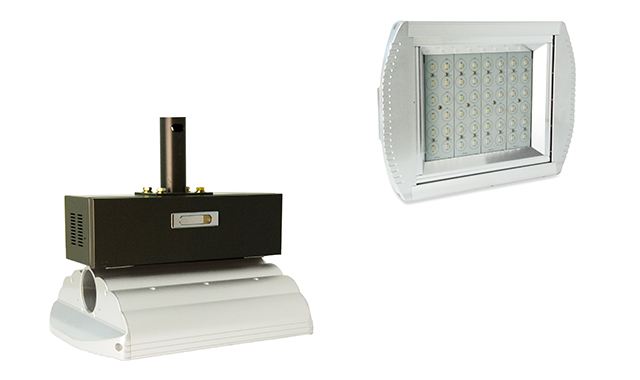

FACTORY LIGHTS >>

SPEC

Power Consumption

WT-C-100
100W
WT-C-150
150W
WT-C-200
200W

Total Luminus Flux

WT-C-100
5,760lm
WT-C-150
8,640lm
WT-C-200
11,520lm

Color Temperature

WT-C-100
6,500K
WT-C-150
6,500K
WT-C-200
6,500K

SMPS Input Valtage

WT-C-100
90~264V/50~60Hz
WT-C-150
90~264V/50~60Hz
WT-C-200
90~264V/50~60Hz

Output Valtage

WT-C-100
DC24V
WT-C-150
DC24V
WT-C-200
DC24V

Lamp Life Time

WT-C-100
100,000Hr
WT-C-150
100,000Hr
WT-C-200
100,000Hr

CRI

WT-C-100
Ra75
WT-C-150
Ra75
WT-C-200
Ra75

Case Surface Temperature

WT-C-100
60℃ and less
WT-S-150
60℃ and less
WT-C-200
60℃ and less

Ruminous Flux Maintenance

WT-C-100
UP TO 90%/40,000Hr
WT-C-150
UP TO 90%/40,000Hr
WT-C-200
UP TO 90%/40,000Hr

WaterProof Grade

WT-C-100
IP-67
WT-C-150
IP-67
WT-C-200
IP-67

Operating Temperature

WT-C-100
-30℃~+85℃
WT-C-150
-30℃~+85℃
WT-C-150
-30℃~+85℃

Power Efficacy

WT-C-100
90%
WT-C-150
90%
WT-C-200
90%

LED Quantity

WT-C-100
White×48
WT-C-150
White×72
WT-C-200
White×96

Material

WT-C-100
PANEL:PC/BODY:AL
WT-C-150
PANEL:PC/BODY:AL
WT-C-200
PANEL:PC/BODY:AL

Size

WT-C-100
340×300×120
WT-C-150
450×300×120
WT-C-200
505×300×120

Weight

WT-C-100
8.0kg
WT-C-150
9.7kg
WT-C-200
10.5kg

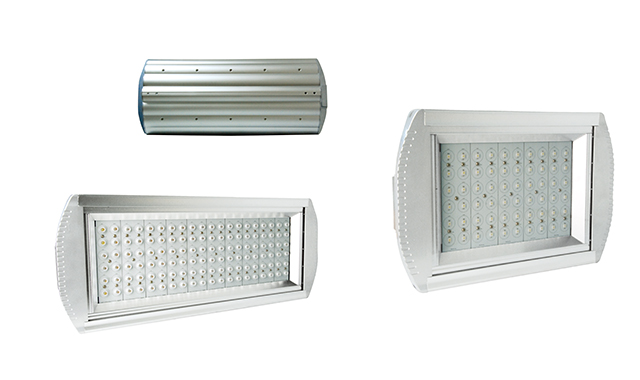

FLOOD LIGHTS >>

SPEC

Power Consumption

WT-B-100
100W
WT-B-150
150W
WT-B-250
200W

Total Luminus Flux

WT-B-100
5,760lm
WT-B-150
8,640lm
WT-B-200
11,520lm

Color Temperature

WT-B-100
6,500K
WT-B-150
6,500K
WT-B-200
6,500K

SMPS Input Valtage

WT-B-100
90~264V/50~60Hz
WT-B-150
90~264V/50~60Hz
WT-B-200
90~264V/50~60Hz

Output Valtage

WT-B-100
DC24V
WT-B-150
DC24V
WT-B-200
DC24V

Lamp Life Time

WT-B-100
100,000Hr
WT-B-150
100,000Hr
WT-B-200
100,000Hr

CRI

WT-B-100
Ra75
WT-B-150
Ra75
WT-B-200
Ra75

Case Surface Temperature

WT-B-100
60℃ and less
WT-B-150
60℃ and less
WT-B-200
60℃ and less

Ruminous Flux Maintenance

WT-B-100
UP TO 90%/40,000Hr
WT-B-150
UP TO 90%/40,000Hr
WT-B-200
UP TO 90%/40,000Hr

WaterProof Grade

WT-B-100
IP-67
WT-B-150
IP-67
WT-B-200
IP-67

Operating Temperature

WT-B-100
-30℃~+85℃
WT-B-150
-30℃~+85℃
WT-B-150
-30℃~+85℃

Power Efficacy

WT-B-100
90%
WT-B-150
90%
WT-B-200
90%

LED Quantity

WT-B-100
White×48
WT-B-150
White×72
WT-B-200
White×96

Material

WT-B-100
PANEL:PC/BODY:AL
WT-B-150
PANEL:PC/BODY:AL
WT-B-200
PANEL:PC/BODY:AL

Size

WT-B-100
340×300×120
WT-b-150
450×300×120
WT-B-200
615×300×120

Weight

WT-B-100
6.5kg
WT-B-150
8.2kg
WT-B-200
14.0kg

CROSSWORK LIGHTS >>

SPEC

Power Consumption

WT-P-100
100W
WT-P-150
150W

Total Luminus Flux

WT-P-100
5,760lm
WT-P-150
8,640lm

Color Temperature

WT-P-100
6,500K
WT-P-150
6,500K

SMPS Input Valtage

WT-P-100
90~264V/50~60Hz
WT-P-150
90~264V/50~60Hz

Output Valtage

WT-P-100
DC24V
WT-P-150
DC24V

Lamp Life Time

WT-P-100
100,000Hr
WT-P-150
100,000Hr

CRI

WT-P-100
Ra75
WT-P-150
Ra75

Case Surface Temperature

WT-P-100
60℃ and less
WT-P-150
60℃ and less

Ruminous Flux Maintenance

WT-P-100
UP TO 90%/40,000Hr
WT-P-150
UP TO 90%/40,000Hr

WaterProof Grade

WT-P-100
IP-67
WT-P-150
IP-67

Operating Temperature

WT-P-100
-30℃~+85℃
WT-P-150
-30℃~+85℃

Power Efficacy

WT-P-100
90%
WT-P-150
90%

LED Quantity

WT-P-100
White×48
WT-P-150
White×72

Material

WT-P-100
PANEL:PC/BODY:AL
WT-P-150
PANEL:PC/BODY:AL

Size

WT-P-100
340×300×120
WT-P-150
450×300×120

Weight

WT-P-100
6.5kg
WT-p-150
8.2kg

PARK LIGHTS >>

SPEC

Power Consumption

WT-G-030
30W
WT-G-050
50W

Total Luminus Flux

WT-G-030
2,160lm
WT-G-050
2,880lm

Color Temperature

WT-G-030
6,500K
WT-G-050
6,500K

SMPS Input Valtage

WT-G-030
90~264V/50~60Hz
WT-G-050
90~264V/50~60Hz

Output Valtage

WT-G-030
DC24V
WT-G-050
DC24V

Lamp Life Time

WT-G-030
100,000Hr
WT-G-050
100,000Hr

CRI

WT-G-030
Ra75
WT-P-050
Ra75

Case Surface Temperature

WT-G-030
60℃ and less
WT-G-050
60℃ and less

Ruminous Flux Maintenance

WT-G-030
UP TO 90%/40,000Hr
WT-G-050
UP TO 90%/40,000Hr

WaterProof Grade

WT-g-030
IP-67
WT-G-050
IP-67

Operating Temperature

WT-G-030
-30℃~+85℃
WT-G-050
-30℃~+85℃

Power Efficacy

WT-G-030
90%
WT-G-050
90%

LED Quantity

WT-G-030
White×48
WT-g-050
White×72

Material

WT-G-030
PANEL:PC/BODY:AL
WT-G-050
PANEL:PC/BODY:AL

Size

WT-G-030
350Ø
WT-G-050
350Ø

Weight

WT-G-030
2.5kg
WT-p-050
2.8kg

LED POSITION LAMP

SPEC

Items
Condition
6,500K
1,300K
unit
Input Voltage

8~20
8~20
DCV
Input Current
DC13.5V
0.053
0.065
mA
Power Dissipation
DC13.5V
0.716
0.878
W
Luminous Flux
DC13.5V
40~60
35~55
lm
Luminous Intensity
DC13.5V
20
20
cd
Color Temperature

-20~+65
-20~+65
Size

11.8ØX26
11.8ØX26
m/m
CRI

5
5
g

LED OUTDOOR

SPEC

Items
WT-S-100
WT-S-150
WT-S-200
Power Consumption
100W
150W
200W
Total Luminous
5,760lm
8,640lm
11,520lm
Color Temprature
6,500K
6,500K
6,500K
SMPS Input Voltage
90~264V / 50~60Hz
90~264V / 50~60Hz
90~264V / 50~60Hz
Output Voltage
DC24V
DC24V
DC24V
Lamp Life Time
100,000Hr
100,000Hr
100,000Hr
CRI
Ra75
Ra75
Ra75
Case SurFace Temperature
60℃ and less
60℃ and less
60℃ and less
Luminous Flux Maintenance
UP TO 90% / 40,000Hr
UP TO 90% / 40,000Hr
UP TO 90% / 40,000Hr
Waterproof Grade
IP-67
IP-67
IP-67
Operating Temperature
-30℃~+85℃
-30℃~+85℃
-30℃~+85℃
Power Efficacy
90%
90%
90%
LED Quantity
White x48
White x72
White x96
Material
PANEL:PC / BODY:AL
PANEL:PC / BODY:AL
PANEL:PC / BODY:AL
Size
340×300×120
450×300×120
505×300×120
Weight
6.5Kg
8.2Kg
9.0Kg

LED SECURITY LIGHTS

SPEC

Items
WT-S-100
WT-S-150
WT-S-200
Power Consumption
25W
50W
70W
Total Luminous
1,140lm
2,880lm
4,320lm
Color Temprature
6,500K
6,500K
6,500K
SMPS Input Voltage
90~264V / 50~60Hz
90~264V / 50~60Hz
90~264V / 50~60Hz
Output Voltage
DC24V
DC24V
DC24V
Lamp Life Time
100,000Hr
100,000Hr
100,000Hr
CRI
Ra75
Ra75
Ra75
Case SurFace Temperature
60℃ and less
60℃ and less
60℃ and less
Luminous Flux Maintenance
UP TO 90% / 40,000Hr
UP TO 90% / 40,000Hr
UP TO 90% / 40,000Hr
Waterproof Grade
IP-67
IP-67
IP-67
Operating Temperature
-30℃~+85℃
-30℃~+85℃
-30℃~+85℃
Power Efficacy
90%
90%
90%
LED Quantity
White x12
White x24
White x36
Material
PANEL:PC / BODY:AL
PANEL:PC / BODY:AL
PANEL:PC / BODY:AL
Size
340×300×120
450×300×120
505×300×120
Weight
3.5Kg
4.5Kg
5.5Kg

LED FACTORY LIGHTS

SPEC

Items
WT-S-100
WT-S-150
WT-S-200
Power Consumption
100W
150W
200W
Total Luminous
5,760lm
8,640lm
11,520lm
Color Temprature
6,500K
6,500K
6,500K
SMPS Input Voltage
90~264V / 50~60Hz
90~264V / 50~60Hz
90~264V / 50~60Hz
Output Voltage
DC24V
DC24V
DC24V
Lamp Life Time
100,000Hr
100,000Hr
100,000Hr
CRI
Ra75
Ra75
Ra75
Case SurFace Temperature
60℃ and less
60℃ and less
60℃ and less
Luminous Flux Maintenance
UP TO 90% / 40,000Hr
UP TO 90% / 40,000Hr
UP TO 90% / 40,000Hr
Waterproof Grade
IP-67
IP-67
IP-67
Operating Temperature
-30℃~+85℃
-30℃~+85℃
-30℃~+85℃
Power Efficacy
90%
90%
90%
LED Quantity
White x48
White x72
White x96
Material
PANEL:PC / BODY:AL
PANEL:PC / BODY:AL
PANEL:PC / BODY:AL
Size
340×300×120
450×300×120
505×300×120
Weight
8.0Kg
9.7Kg
10.5Kg

LED FLOOD LIGHTS

SPEC

Items
WT-S-100
WT-S-150
WT-S-200
Power Consumption
100W
150W
250W
Total Luminous
5,760lm
8,640lm
14,400lm
Color Temprature
6,500K
6,500K
6,500K
SMPS Input Voltage
90~264V / 50~60Hz
90~264V / 50~60Hz
90~264V / 50~60Hz
Output Voltage
DC24V
DC24V
DC24V
Lamp Life Time
100,000Hr
100,000Hr
100,000Hr
CRI
Ra75
Ra75
Ra75
Case SurFace Temperature
60℃ and less
60℃ and less
60℃ and less
Luminous Flux Maintenance
UP TO 90% / 40,000Hr
UP TO 90% / 40,000Hr
UP TO 90% / 40,000Hr
Waterproof Grade
IP-67
IP-67
IP-67
Operating Temperature
-30℃~+85℃
-30℃~+85℃
-30℃~+85℃
Power Efficacy
90%
90%
90%
LED Quantity
White x48
White x72
White x96
Material
PANEL:PC / BODY:AL
PANEL:PC / BODY:AL
PANEL:PC / BODY:AL
Size
340×300×120
450×300×120
615×300×120
Weight
6.5Kg
8.2Kg
14.0Kg

LED CROSSWORK LIGHTS

SPEC

Items
WT-S-100
WT-S-150
Power Consumption
100W
150W
Total Luminous
5,760lm
8,640lm
Color Temprature
6,500K
6,500K
SMPS Input Voltage
90~264V / 50~60Hz
90~264V / 50~60Hz
Output Voltage
DC24V
DC24V
Lamp Life Time
100,000Hr
100,000Hr
CRI
Ra75
Ra75
Case SurFace Temperature
60℃ and less
60℃ and less
Luminous Flux Maintenance
UP TO 90% / 40,000Hr
UP TO 90% / 40,000Hr
Waterproof Grade
IP-67
IP-67
Operating Temperature
-30℃~+85℃
-30℃~+85℃
Power Efficacy
90%
90%
LED Quantity
White x48
White x72
Material
PANEL:PC / BODY:AL
PANEL:PC / BODY:AL
Size
340×300×120
450×300×120
Weight
6.5Kg
8.2Kg

LED PARK LIGHTS

SPEC

Items
WT-S-100
WT-S-150
Power Consumption
30W
50W
Total Luminous
2,160lm
2,880lm
Color Temprature
6,500K
6,500K
SMPS Input Voltage
90~264V / 50~60Hz
90~264V / 50~60Hz
Output Voltage
DC24V
DC24V
Lamp Life Time
100,000Hr
100,000Hr
CRI
Ra75
Ra75
Case SurFace Temperature
90℃ and less
90℃ and less
Luminous Flux Maintenance
UP TO 90% / 40,000Hr
UP TO 90% / 40,000Hr
Waterproof Grade
IP-67
IP-67
Operating Temperature
-30℃~+85℃
-30℃~+85℃
Power Efficacy
90%
90%
LED Quantity
White x48
White x72
Material
PANEL:PC / BODY:AL
PANEL:PC / BODY:AL
Size
Weight
2.5Kg
2.8Kg

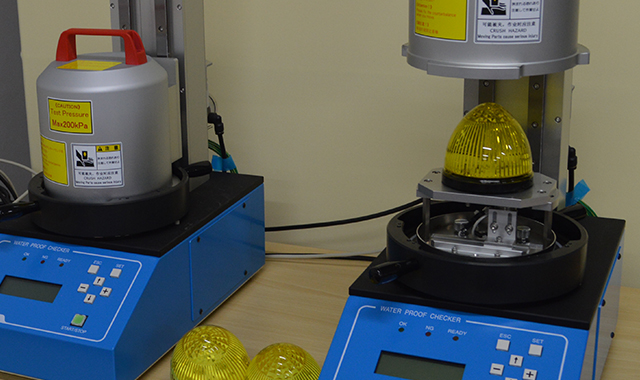

TEST SYSTEM

Water Proof Checker

防水検査機を使用してテストしています。

機器名称
WPC6156P02/M/WO  Ver.3.5.3

概要

  • 検出方式:空気加圧歪測定法による機密防水検査
  • 測定モード:2モード連続測定
  • テスト圧力:WPCP6156P02:10kPa~200kPa

TOPへ戻る:画像
